AVS470
SuperVision® CAMERA

TECHNICAL NOTE
M1 MODIFICATION

SAME “FORM, FIT, FUNCTION”

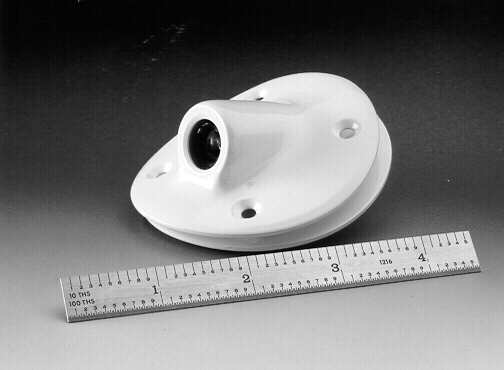

SAME CAMERA HEAD ENCLOSRE
SAME CCU OVERALL SIZE
SAME CCU RACK and TRAY
SAME CONNECTORS, IN & OUT OF CCU
SAME POWER REQUIREMENT
SAME VIDEO OUTPUTS

DIFFERENT CAMERA CABLE
SMALLER CAMERA CABLE (From .31 to .25” diameter)
SMALLER CAMERA CABLE CONNECTORS (From .67 to .44”)

IMPROVED MINIMUM ILLUMINATION (From 5 to 2.5 lux)
IMPROVED CCU POWER SUPPLY
(Switching Regulators, more efficient & lower heat)
IMPROVED CCU SHAPE (Cleaner, no Voltage Regulators)

RE-TESTED DO-160D

Page 1A
AUG 15/03
